034MOTORSPORT B9/B9.5 AUDI RS4/RS5 EA839 2.9TT DYNAMIC+ PERFORMANCE ECU & AL552 ZF8 TRANSMISSION TUNING BUNDLE | Performance parts and accessories for Audi, BMW, Volkswagen, Mini, Mercedes Benz, Porsche and Volvo

034MOTORSPORT B9/B9.5 AUDI RS4/RS5 EA839 2.9TT DYNAMIC+ PERFORMANCE ECU & AL552 ZF8 TRANSMISSION TUNING BUNDLE

(No reviews yet) Write a Review
034MOTORSPORT B9/B9.5 AUDI RS4/RS5 EA839 2.9TT DYNAMIC+ PERFORMANCE ECU & AL552 ZF8 TRANSMISSION TUNING BUNDLE
MPN:
034-103-293
SKU:
034-103-293

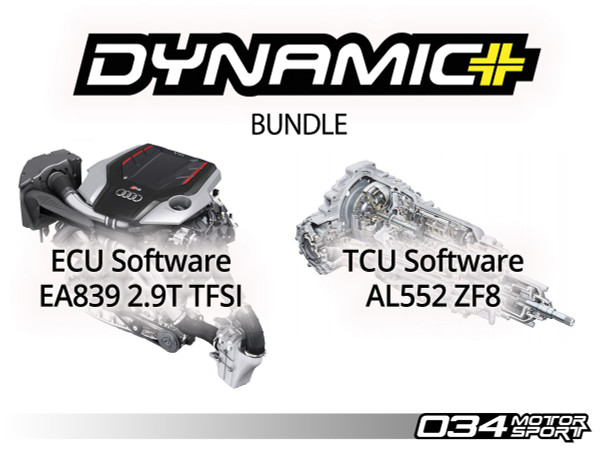

  • Photo - Primary

Product Overview

The 034Motorsport Dynamic+ Stage 1 and Stage 1+ Tuning Software for the Audi B9/B9.5 RS4 & RS5 equipped with the EA839 2.9TT V6 engine is designed to transform the driving experience of your vehicle! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the ECU safely and effectively increase the power output of the twin-turbocharged V6 in a refined manner. The result is a significant improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.

034Motorsport B9/B9.5 Audi RS4 & RS5 EA839 2.9TT Dynamic+ Performance Software was developed entirely in-house on 034Motorsport's Development B9 RS5. The calibrations were then refined on multiple enthusiast-owned beta tester cars around North America.

Included at no extra cost is the Stage 1 Dynamic+ Performance TCU Software for the B9/B9.5 Audi RS4 & RS5 equipped with the AL552 8-Speed ZF8 transmission to further enhance the shifting and acceleration of your ZF8 Equipped 2.9TT! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the AL552 TCU safely and effectively raise the torque limits of the ZF8, allowing your car to make use of Stage 1 or Stage 1+ Performance Software.

034Motorsport Engineers develop special in-house tools that allow us to access the firmware and maps inside the factory ECU, this level of engineering is required to prevent workarounds and bandaids that many aftermarket companies resort to. 034Motorsport engineers and optimizes the ECU calibrations just like Audi engineers would, but accessing the source of how the ECU controls the engine and making changes at the base level.

This is the ONLY way 034Motorsport can ensure our calibrations meet our high standards for ultimate power with smooth drivability, perfect function, reliability and added functions and features even beyond what the factory programming can provide.

NOTE: The E85 calibration is not a flex-fuel style tune. The tune will work with E85 directly from the pump, both summer and winter blends (ethanol content can vary from E60-E85). This tune requires only E85 be pumped into the fuel tank. Gasoline blends and race fuel mixtures should not be used, and engine damage could occur if the incorrect fuel or octane is used. We strongly recommend an ethanol content gauge be used so that you can monitor the actual ethanol content at the pump you are using.

When switching fuels, it takes about 20-30 minutes of normal driving for the new tank of fuel to fully circulate through the system when filled at E. Please minimize load (don’t floor it!) until you have driven the car for at least 30 minutes. Ethanol content analyzers installed close to the fuel rail will also help you see when the ethanol has fully run through the system.

WHY IS AL552 ZF8 TCU SOFTWARE NECESSARY ON THE EA839 2.9TT?

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicles drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

We are happy to provide our Stage 1 Dynamic+ TCU tuning at no additional cost ($150 value) to the customer in order to ensure that you are maximizing the performance and reliability of your 2.9TT equipped vehicle!

ECU SOFTWARE FEATURES:

Dyno Proven Gains
Increased Horsepower & Torque Throughout the Powerband
Raised Rev Limit
Improved Power Delivery, Acceleration, and Driving Characteristics
Multiple Octane Support
Available in 91 Octane, 93 Octane, and E85 Calibrations
Faster Throttle Response & Improved Precision
Refined Throttle Mapping for Enhanced Throttle Response & Precision.
Speed Limiter Removed
Speed Limiter Removed for Increased Top Speed
Track Tested
Track-Tested Calibrations Ensure Consistent Power Delivery
Port Flashing
Flashed Directly Via the Factory OBD-II Port

034MOTORSPORT EA839 2.9TT TURBOCHARGED PERFORMANCE SOFTWARE COMPARISON:

STAGE FUEL MAX HP MAX TQ MAX HP GAIN MAX TQ GAIN REV LIMITER* SPEED LIMITER
Stock 91 Oct (AKI) 441 HP 467 TQ NA NA 6,800 RPM 155 MPH
Stage 1 91 Oct (AKI) 484 HP 501 TQ 48 HP @ 6,300 RPM 41 TQ @ 6,300 RPM 7,200 RPM
Stage 1 93 Oct (AKI) 514 HP 537 TQ 71 HP @ 6,300 RPM 78 TQ @ 3,550 RPM 7,200 RPM
Stage 1 E85 532 HP 548 TQ 91 HP @ 5,300 RPM 84 TQ @ 5,500 RPM 7,200 RPM
Stage 1+ 91 Oct (AKI) 484 HP 501 TQ 48 HP @ 6,300 RPM 41 TQ @ 6,300 RPM 7,200 RPM
Stage 1+ 93 Oct (AKI) 514 HP 537 TQ 71 HP @ 6,300 RPM 78 TQ @ 3,550 RPM 7,200 RPM
Stage 1+ E85 566HP 610 TQ 132 HP @ 6,300 RPM 151 TQ @ 3,600 RPM 7,200 RPM



***All octane ratings are in US standard AKI (RON+MON). Some ROW countries such as the UK use a RON octane rating that differs from US Octane ratings. Please email tuning@034motorsport.com to ensure you are running the correct octane file for your area. Running the incorrect octane file for your fuel can result in irreversible damage.

DYNAMIC+ ECU FEATURES:

THERMAL MANAGEMENT SAFETY STRATEGIES:

With increased power, comes increased heat. With increased heat, comes the need for additional management. For both charge air temperature and engine coolant temperature, 034Motorsport has implemented key safety features to keep your engine running optimally and safely in virtually any condition - just like the OEM calibration. Substantial effort was spent on balancing the trade off of charge temp for power, and improving the compressor efficiency so that it doesn't generate too much charge temp.

Charge Air Temp: When the charge temp exceeds 80*C there is a reduction in power output. When the charge temp exceeds 85*C there is a more significant reduction in power output. This charge temp limitation is there to prevent knock events from excessive charge temps, which can severely damage a motor. With these safety measures in place, you can confidently drive your car, from the top of Pikes Peak to Death Valley, knowing the factory ECU has optimal performance and safety covered.

Coolant Temp/Fan Strategy: From the factory, Audi likes to run hotter water temps to reduce fluid friction losses from cooler, more viscous oil. While better for efficiency, this strategy becomes a safety issue when loads and heat are increased. 034Motorsport calibrators have rescaled the coolant temperature targets and fan control strategies to target lower coolant temperatures when in higher heat conditions, allowing the car to run within a safe heat range rescaled for the added heat that comes from tuning the engine. Once again, this means that 034Motorsport calibrators have kept your confidence in safety fully intact from the OEM configuration.

Turbocharger Intercooler Pump Optimizations: The coolant pump that circulates water in the turbocharger intercooler system is now optimized to reduce Intake Air Temperatures faster and at a lower overall set point.

LAUNCH CONTROL OPTIMIZATIONS:

From the factory, conventional launch control strategies are not activated in the ECU. 034Motorsport’s skilled Calibration team has properly engineered and implemented true launch control functionality to the EA839 and AL552 ZF8. 034Motorsport engineers have refined and optimized the requested launch torque to ensure repeatable and consistent launches, capable of reducing 0-60 times by up to half a second depending on road conditions and tire grip. Unlike the factory ECU that tries to “push through the brakes” on a standing brake launch, the 034Motorsport Dynamic+ calibration will allow proper loading of the engine without pushing through the brakes as hard, and properly targets a specified RPM to launch at.

FUEL SYSTEM OPTIMIZATION:

While E85 provides substantial increases in power, it requires about 30% more fuel than standard pump gasoline per ignition cycle. Utilizing a variety of fuel stratified injection strategies, 034Motorsport calibrators have further optimized the factory fueling system to be able to adequately support full E85 on factory hardware for Stage 1 tunes.

The main limiting factory in the 2.9TT fuel system is the factory high pressure fuel pump. 034Motorsport calibrators have optimized Stage 1+ files to add additional power while running E85 with the installation of an upgraded high pressure fuel pump.

In order to properly run 034Motorsport Stage 1+ files, you must be using an upgraded HPFP that has a 37% larger diameter piston over stock.

ACCURATE BOOST AND TORQUE REPORTING:

As with anything in life, it is always best to be truthful. This especially applies when it comes to reporting torque outputs in the ECU to the other control modules in the car, as well as displaying accurate boost readings to the driver via the boost gauge found on the Virtual Cockpit. With 034Motorsport Dynamic+ software, the ECU is reporting accurate torque values to critical systems like the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission

ENHANCED CRACKLES IN DYNAMIC MODE

Crackles are further enhanced in Dynamic mode! They can be toggled on or off via Drive Select. They will be on in Dynamic and off in Comfort. In Individual, crackles can be toggled on or off via Engine Sound.

VALVED-EXHAUST DELETE COMPATIBILITY

Crackles are further enhanced in Dynamic mode! They can be toggled on or off via Drive Select. They will be on in Dynamic and off in Comfort. In Individual, crackles can be toggled on or off via Engine Sound.

VOLUMETRIC EFFICIENCIES AND HOW TO OPTIMIZE FOR THEM:

This ECU tune allows for full performance when using aftermarket exhausts without exhaust flaps, or OEM exhaust with valves unplugged. Without this feature, running your car with the exhaust flap controller unplugged/with cancellers installed would result in derated performance. Volumetric efficiency (VE) is how well a motor can move air/fuel in and out of it’s combustion chamber, the higher the efficiency, the more of the air/fuel can be converted to torque and power. Every engine has a volumetric efficiency that varies with RPM. For this reason, every internal combustion engine has torque that varies with RPM; some motors, thanks to advanced features like variable valve and camshaft timing, can create exceptionally flat torque curves across a broad range of RPM simply due to optimizing VE using these advanced control features. Despite this ability, every modern engine, especially with forced induction, will have torque values that vary across the RPM band. In the case of the 2.9TT EA839, there is a dip in VE at 3000 RPM, or said a different way, VE is very efficient from 2-2500 RPM, and continues to be very efficient by 3500 RPM, but drops to a slightly lower level at 2700-3000 RPM. For reference, all of our dyno charts show a dip in TQ around 2700-3000 RPM for this very reason. It is important to note that this isn’t a problem with the tuning, and we could have very easily smoothed out the torque curve in our charts to minimize this, but we chose to leave it for the sake of accuracy and transparency.

The normal VE drop at 3000 is substantial, and more than what our final power numbers suggest, but instead of smoothing the curve to hide this, we chose to tackle it head on using our tuning expertise and technical mastery calibrating these ECU’s. A way to combat the VE drop is to increase boost through this region, but instead of simply turning up the boost using the boost control strategy, we re-engineered the ECU’s torque request function to target a higher TQ through this region. The result is more power and torque using the ECU’s factory control strategy, which keeps all factory ECU functionality and safety features in place. Ultimately we are able to make the dip less than the natural VE by raising boost a safe amount, but boost cannot make up all the difference. What we have done is optimized in performance, safety and functionality - just as if the factory had done it.

Keen observers will note that this dip is present in other company’s advertised charts too, but greatly smoothed over and reduced visually, so buyers should be aware. This dip is in the VE of the motor, it’s normal for all engines, and there is no reason to hide it or be anything less than transparent and honest about this motor’s performance.

PERFORMANCE TCU STAGE 2 SOFTWARE FEATURES:

IMPROVED TORQUE MANAGEMENT

As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.

034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.

OPTIMIZED SHIFT POINTS

In order to take advantage of the increased powerband from the turbochargers, Dynamic+ Tuning optimizes the shift points in all driving modes to maximize acceleration during wide open throttle scenarios.

IMPROVED SHIFT SPEEDS

To further enhance the acceleration of your Audi, the ZF8 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration. Shift times are now up to 70% faster!

Shift pressures are also increased in Sport Mode to maximize performance. In Sport Mode, you will notice less lazy shifts, more firm shifts, which ultimately results in quicker acceleration.

AMAX SHIFTING

AMAX Shifting is a shifting strategy that stands for “Acceleration Maximum.” These gear shifts are the fastest and quickest possible for optimal acceleration . These are activated in shifting after launching your vehicle from a stop using launch control.

AMAX is now activated in the 4>5, 5>6, and 6>7 shifts where it was previously disabled from the factory.

When in AMAX mode, line pressures in the transmission have been optimized to safely increase shift speeds.

INCREASED LAUNCH STALL RPM

The launch stall RPM has been raised for a significant increase in force, allowing you to get off the line as fast as possible.

DELAY TIME BETWEEN LAUNCHES REDUCED

The delay time between launch control activations has been shortened. This is useful when drag racing to heat up tires using launch control, and re-activate quickly before launching down the drag strip!

034MOTORSPORT B9/B9.5 AUDI RS4 & RS5 EA839 2.9TT ECU STAGE DESCRIPTIONS:



STAGE 1

034Motorsport Stage 1 Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with no hardware required. Due to the significant addition of torque from just Stage 1, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, and E85. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.



STAGE 1+

034Motorsport Stage 1+ Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with the addition of an upgraded high pressure fuel pump and no additional hardware. Due to the significant addition of torque from just Stage 1+, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.

Stage 1+ Performance Software for the EA839 2.9TT increases performance over Stage 1 running E85. If you are traveling somewhere without E85, 034Motorsport also offers 91 & 93 octane files to be used with an upgraded HPFP. This allows you to travel cross country without worry of having to plan for E85 stations or carrying gas jugs. Stage 1+ files do not increase performance figures on pump gas over the factory HPFP.

In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, and E85. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.



STAGE 3 HYBRID TURBOCHARGER

034Motorsport is actively developing Hybrid Turbocharger ECU files for the EA839 2.9TT, and will be releasing them at a later date.



034MOTORSPORT B9 AUDI RS4 & RS5 AL552 ZF8 TCU STAGE DESCRIPTIONS:



STAGE 1

(Included with Purchase of 034Motorsport 2.9TT EA839 ECU Tuning)

034Motorsport Stage 1 Transmission Performance Tuning Software for the AL552 is included in the Dynamic+ Tuning Bundle with our Stage 1 & Stage 1+ ECU software. The Dynamic+ ECU Tuning accurately reports torque values to the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission. This results in better shift quality as the transmission is not having to reduce engine torque or having to adapt to misreported inputs.

STAGE 2

The 034Motorsport Stage 2 Transmission Performance Tuning Software for the AL552 is designed to further improve the drivability and performance of your Dynamic+ Tuned Audi B9/B9.5 RS4 or RS5. Dynamic+ Stage 2 TCU Software can be used with our Stage 1 OR Stage 1+ ECU software. 034Motorsport Stage 2 TCU Tuning further improves shifting performance and speed for casual and track driving in all driving modes. The result is a noticeable improvement in acceleration without any sacrifice in comfort or reliability. Stage 2 TCU Tuning is currently available for both B9 and B9.5 RS4 and RS5!

034MOTORSPORT EA839 2.9TT TURBOCHARGED PERFORMANCE SOFTWARE DYNO CHARTS:


Select Dyno Chart:



Dyno Chart



034MOTORSPORT EA839 2.9TT TURBOCHARGED PERFORMANCE SOFTWARE & HARDWARE REQUIREMENTS:



STAGE REQUIRED MODIFICATIONS RECOMMENDED MODIFICATIONS
Stage 1 91
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1 93
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1 E85
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Ethanol Content Sensor/Gauge
  • Stage 2 Dynamic+ TCU Software
Stage 1+ 91
  • Upgraded HPFP
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1+ 93
  • Upgraded HPFP
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Stage 2 Dynamic+ TCU Software
Stage 1+ E85
  • Upgraded HPFP
  • Stage 1 Dynamic+ TCU Software

  • Intake
  • Upgraded Intercooler
  • Heat Exchanger
  • Ethanol Content Sensor/Gauge
  • Stage 2 Dynamic+ TCU Software




034MOTORSPORT DYNAMIC+ END USER FLASHING KIT:

034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.

Requirements for End User Flashing:

  • Windows 10 Laptop with Available USB Port
  • Power Supply for Laptop
  • Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
  • Battery Charger, 20AMP minimum (CTEK Brand recommended)
  • Available Electrical Outlets

034Motorsport End User Flashing Kit Contents:

  • 034Motorsport OBD-II Adapter
  • USB-A to USB-B Cable
  • Carrying Case
  • User Credentials (Provided Via Email)

EMISSIONS DISCLAIMER:

  • This product is sold for racing use as well as use on vehicles not registered for on highway use.
  • By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
